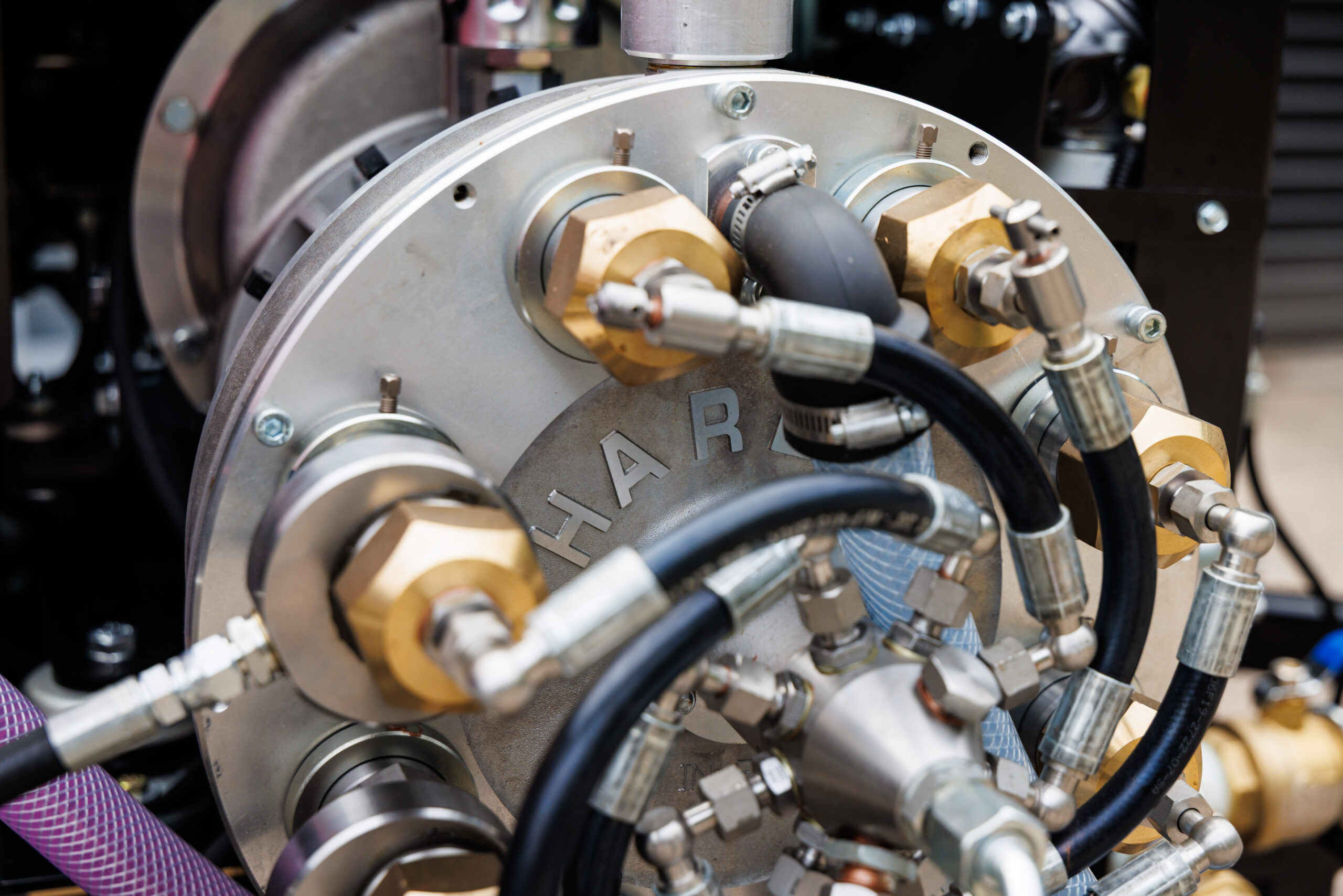

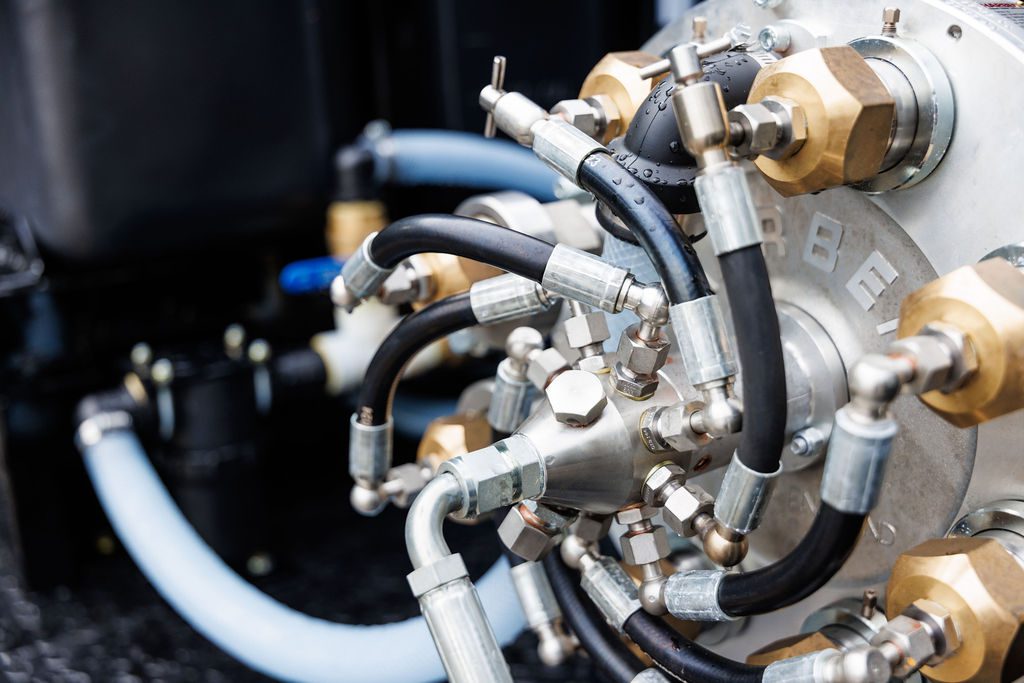

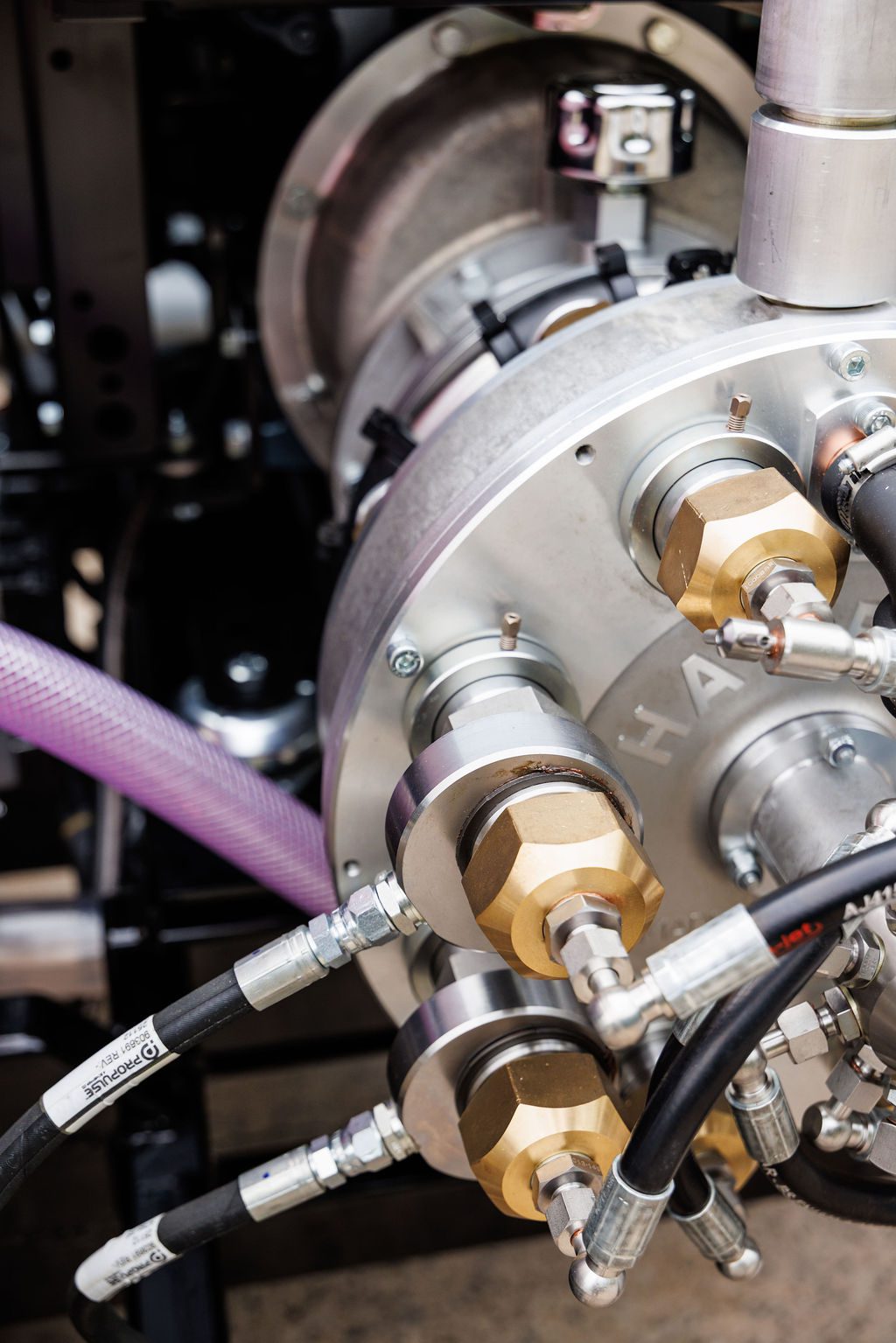

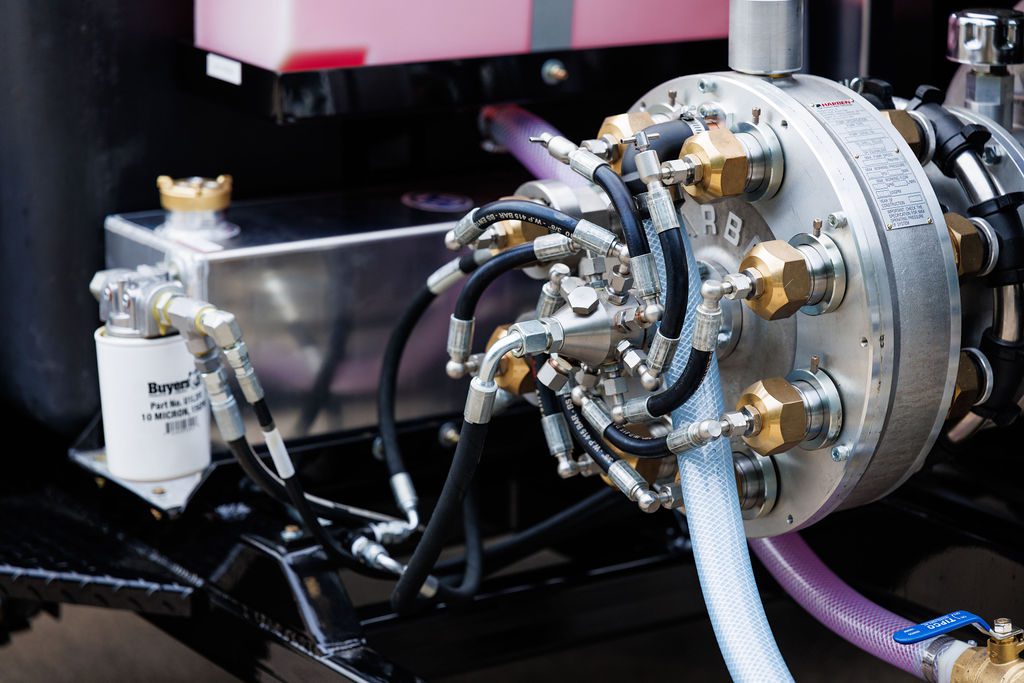

P TYPE (High Pressure Diaphragm Pump)

The Harben P type pump is a high pressure diaphragm pump capable of pressures up to 6,000 psi and flows to 18 gpm. It is available with 3, 4, 6 or 8 cylinders requiring from 10 to 50hp depending upon the pressure and flow configuration chosen.

Drive power can be diesel or electric and we have a range of gearbox ratios to suit all requirements.

It has a unique mode of operation that keeps all the moving parts inside the pump separated from the pumped fluid. The video below clearly shows the simplicity of operation which delivers some significant advantages over more traditional direct acting pumps.

  • No packings or seals to wear out
  • Pump can run dry without damage
  • Suitable for a large range of low viscosity fluids
  • Pumps low lubricity fluids with ease
  • Has multi-cylinders therefore minimal pulsation
  • Compact and lightweight
  • Simple to pressure compensate
  • Frost tolerant

The Harben high pressure diaphragm pump is used in numerous pumping applications because it is efficient, reliable and easy to maintain.

  • Water jetting
  • Drain cleaning
  • Duct desilting
  • Hydrostatic testing
  • Umbilical flushing & HPU’s
  • Hot steel descaling
  • Water hydraulic systems

Looking for higher pressure or flow? CLICK HERE for our Century range of high pressure diaphragm pumps

Looking for higher flow? CLICK HERE for our Hi-Q range of high pressure diaphragm pumps

FOR CUSTOMERS OUTSIDE OF THE USA PLEASE CLICK HERE




  • Unrivalled reliability and long service intervals
  • Variable pressure and flow options without piston changes
  • Run dry without damage
  • Filtration to 150 microns
  • Pump sea water without modification
  • Configure for use with hot water up to 140°
  • Multi-cylinders therefore no pulsation
  • Compact and lightweight
